  TRAFFIC INFORMATION SERVICE (TIS)


  a.
  INTRODUCTION

The
  Traffic Information Service (TIS) provides information to the cockpit via data
  link, that is similar to VFR radar traffic advisories normally received over
  voice radio.  Among the first
  FAA-provided data services, TIS is intended to improve the safety and
  efficiency of "see and avoid" flight through an automatic display
  that informs the pilot of nearby traffic and potential conflict situations.
  This traffic display is intended to assist the pilot in visual
  acquisition of these aircraft.  TIS
  employs an enhanced capability of the terminal Mode S radar system, which
  contains the surveillance data, as well as the data link required to
  “uplink” this information to suitably-equipped aircraft (known as a TIS
  “client”).  TIS provides
  estimated position, altitude, altitude trend, and ground track information for
  up to 8 intruder aircraft within 7 NM horizontally, +3,500 and –3,000 feet
  vertically of the client aircraft (see Figure 1-2-4). The range of a target
  reported at a distance greater than 7 NM only indicates that this target will
  be a threat within 34 seconds and does  not
  display an precise distance. TIS will alert the pilot to aircraft (under
  surveillance of the Mode S radar) that are estimated to be within 34 seconds
  of potential collision, regardless of distance of altitude. TIS surveillance
  data is derived from the same radar used by ATC; this data is uplinked to the
  client aircraft on each radar scan (nominally every 5 seconds).


TIS
  Proximity Coverage Volume



FIG
  1-2-4


  b.
  REQUIREMENTS


  1.
  In order to use TIS, the client and any intruder aircraft must be
  equipped with the appropriate cockpit equipment and fly within the radar
  coverage of a Mode S radar capable of providing TIS.
  Typically, this will be within 55 NM of the sites depicted in Figure
  1-2-5.  ATC communication is not a
  requirement to receive TIS, although it may be required by the particular
  airspace or flight operations in which TIS is being used.

  2. The cockpit equipment
  functionality required by a TIS client aircraft to receive the service
  consists of the following (refer to Figure 1-2-6):

  (a)
  Mode S data link transponder with altitude encoder.

  (b)
  Data link applications processor with TIS software installed.

  (c)
  Control-display unit.

  (d)
  Optional equipment includes a digital heading source to correct display
  errors caused by "crab angle" and turning maneuvers.
Note:
  Some of the above functions will likely be combined into single pieces
  of avionics, such as (a) and (b).

  3.
  To be visible to the TIS client, the intruder aircraft must, at a
  minimum, have an operating transponder (Mode A, C or S).
  All altitude information provided by TIS from intruder aircraft is
  derived from Mode C reports, if appropriately equipped.

  4.
  TIS will initially be provided by the terminal Mode S systems that are
  paired with ASR-9 digital primary radars.
  These systems are in locations with the greatest traffic densities,
  thus will provide the greatest initial benefit.
  The remaining terminal Mode S sensors, which are paired with ASR-7 or
  ASR-8 analog primary radars, will provide TIS pending modification or
  relocation of these sites.  See
  Figure 1-2-5 for site locations.  There
  is no mechanism in place, such as NOTAMs, to provide status update on
  individual radar sites since TIS is a non-essential, supplemental information
  service.
The
  FAA also operates en route Mode S radars (not illustrated) that rotate once
  every 12 seconds.  These sites
  will require additional development of TIS before any possible implementation.
  There are no plans to implement TIS in the en route Mode S radars at
  the present time.

  c.
  CAPABILITIES

  1.  TIS
  provides ground-based surveillance information over the Mode S data link to
  properly-equipped client aircraft to aid in visual acquisition of proximate
  air traffic.  The actual avionics
  capability of each installation will vary and the supplemental handbook
  material must be consulted prior to using TIS.
  A maximum of eight (8) intruder aircraft may be displayed; if more than
  eight aircraft match intruder parameters, the eight “most significant”
  intruders are uplinked.  These
  “most significant” intruders are usually the ones in closest proximity
  and/or the greatest threat to the TIS client.

  2.
  TIS, through the Mode S ground sensor, provides the following data on
  each intruder aircraft:

  (a)
  Relative bearing information in 6-degree increments.

  (b)
  Relative range information in 1/8 NM to 1 NM increments (depending
  on range).

  (c)
  Relative altitude in 100-foot increments (within 1,000 feet) or
  500-foot increments (from 1,000-3,500 feet) if the intruder aircraft has
  operating altitude reporting capability.

  (d)
  Estimated intruder ground track in 45-degree increments.

  (e)
  Altitude trend data (level within 500 fpm or climbing/descending
  >500 fpm) if the intruder aircraft has operating altitude reporting
  capability.

  (f)
  Intruder priority as either an “traffic advisory” or
  “proximate” intruder.

  3.
  When flying from surveillance coverage of one Mode S sensor to
  another, the transfer of TIS is an automatic function of the avionics system
  and requires no action from the pilot.

  4.
  There are a variety of status messages that are provided by either
  the airborne system or ground equipment to alert the pilot of high priority
  intruders and data link system status. These messages include the following:

  (a)
  Alert:  Identifies a
  potential collision hazard within 34 seconds.
  This alert may be visual and/or audible, such as a flashing display
  symbol or a headset tone. A target is a threat if the time to the closest
  approach in vertical and horizontal coordinates is less that 30 seconds and
  the closest approach is expected to be within 500 feet vertically and 0.5
  nautical miles laterally.

  (b)
  TIS Traffic:  TIS
  traffic data is displayed.

  (c)
  Coasting:  The TIS
  display is more than 6 seconds old.  This
  indicates a missing uplink from the ground system.
  When the TIS display information is more than 12 seconds old, the “No
  Traffic” status will be indicated.

  (d)  No Traffic:
  No intruders meet proximate or alert criteria.
  This condition may exist when the TIS system is fully functional or may
  indicate "coasting" between 12 and 59 seconds old (see (c) above).

  (e)
  TIS Unavailable:  The
  pilot has requested TIS, but no ground system is available.
  This condition will also be displayed when TIS uplinks are missing for
  60 seconds or more.

  (f)
  TIS Disabled:  The
  pilot has not requested TIS or has disconnected from TIS.
(g)
   Goodbye:
   The client aircraft has flown
  outside of TIS coverage.
Note:
  Depending
  on the avionics manufacturer implementation, it is possible that some of these
  messages will not be directly available to the pilot.

  5.
  Depending on avionics system design, TIS may be presented to the pilot
  in a variety of different displays, including text and/or graphics.
  Voice annunciation may also be used, either alone or in combination

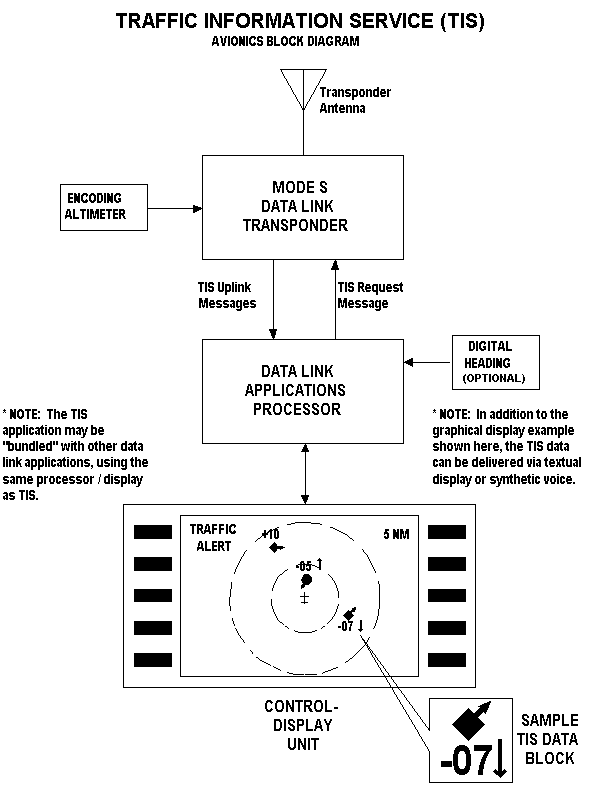

  with a visual display.  Figure
  1-2-6 shows an example of a TIS display using symbology similar to the Traffic
  Alert and Collision Avoidance System (TCAS) installed on most passenger air
  carrier/commuter aircraft in the U.S.  The
  small symbol in the center represents the client aircraft and the display is
  oriented “track up,” with the 12 o’clock position at the top.
  The range rings indicate 2 and 5 NM.
  Each intruder is depicted by a symbol positioned at the approximate
  relative bearing and range from the client aircraft.
  The circular symbol near the center indicates an “alert” intruder
  and the diamond symbols indicate “proximate” intruders.

  6.
  The inset in the lower right corner of Figure 1-2-6 shows a possible
  TIS data block display.  The
  following information is contained in this data block:

  (a)
  The intruder, located approximately four o’clock, three miles, is
  a “proximate” aircraft and currently not a collision threat to the client
  aircraft.  This is indicated by
  the diamond symbol used in this example.

  (b)
  The intruder ground track diverges to the right of that of the
  client aircraft, indicated by the small arrow.

  (c)
  The intruder altitude is 700 feet less than or below the client
  aircraft, indicated by the “-07” located under the symbol.

  (d)
  The intruder is descending >500 fpm, indicated by the downward
  arrow next to the “-07” relative altitude information.
  The absence of this arrow when an altitude tag is present indicates
  level flight or a climb/descent rate less than 500 fpm.
Note:
  If the intruder did not have an operating altitude encoder (Mode C),
  the altitude and altitude trend “tags” would have been omitted.

  d.  LIMITATIONS

  1.
  TIS is NOT intended
  to be used as a collision avoidance system and does not relieve the pilot
  responsibility to "see and avoid" other aircraft (see section 5-5-8
  of this publication).  TIS shall
  not be for avoidance maneuvers during IMC or other times when there is no
  visual contact with the intruder aircraft.
  TIS is intended only to assist in visual acquisition of other aircraft
  in VMC.  No
  recommended avoidance maneuvers are provided for, nor authorized, as a direct
  result of a TIS intruder display or TIS alert.

  2. While TIS is a useful
  aid to visual traffic avoidance, it has some system limitations that must be
  fully understood to ensure proper use.  Many
  of  these limitations are inherent
  in secondary radar surveillance.   In
  other words, the information provided by TIS will be no better than that
  provided to ATC.  Other
  limitations and anomalies are associated with the TIS predictive algorithm.

  (a)
  Intruder Display Limitations:  TIS
  will only display aircraft with operating transponders installed.
  TIS relies on surveillance of the Mode S radar, which is a “secondary
  surveillance” radar similar to the ATCRBS described in paragraph 1-2-2 of
  this publication.

  (b)
  TIS Client Altitude Reporting Requirement:
  Altitude reporting is required by the TIS client aircraft in order to
  receive TIS.  If the altitude
  encoder is inoperative or disabled, TIS will be unavailable, as TIS requests
  will not be honored by the ground system. As such, TIS requires altitude
  reporting to determine the Proximity Coverage Volume as indicated in Figure
  1-2-4. TIS users must be alert to altitude encoder malfunctions, as TIS has no
  mechanism to determine if client altitude reporting is correct.
  A failure of this nature will cause erroneous and possibly
  unpredictable TIS operation.  If
  this malfunction is suspected, confirmation of altitude reporting with ATC is
  suggested.

  (c)
  Intruder Altitude Reporting:  Intruders
  without altitude reporting capability will be displayed without the
  accompanying altitude tag.  Additionally,
  non-altitude reporting intruders are assumed to be at the same altitude as the
  TIS client for alert computations.  This
  helps to ensure that the pilot will be alerted to all traffic under radar
  coverage, but the actual altitude difference may be substantial.
  Therefore, visual acquisition may be difficult in this instance.

  (d)  Coverage Limitations:
  Since
  TIS is provided by ground-based, secondary surveillance radar, it is subject
  to all limitations of that radar.  If
  an aircraft is not detected by the radar, it can not be displayed on TIS.
  Examples of these limitations are as follows:

  (1)TIS
  will typically be provided within 55 NM of the radars depicted in Figure
  1-2-5.  This maximum range can
  vary by radar site and is always subject to “line of sight” limitations;
  the radar and data link signals will be blocked by obstructions, terrain, and
  curvature of the earth.

  (2)
  TIS will be unavailable at low altitudes in many areas of the country,
  particularly in mountainous regions.  Also,
  when flying near the “floor” of radar coverage in a particular area,
  intruders below the client aircraft may not be detected by TIS.

  (3)TIS will be temporarily
  disrupted when flying directly over the radar site providing coverage if no
  adjacent site assumes the service. A ground-based radar, like a VOR or
  NDB, has a zenith cone, sometimes referred to as the cone of confusion
  or cone of silence.  This is the
  area of ambiguity directly above the station where bearing information is
  unreliable.  The zenith cone
  setting for TIS is 34 degrees:  Any
  aircraft above that angle with respect to the radar horizon will lose TIS
  coverage from that radar until it is below this 34 degree angle.
  The aircraft may not actually lose service in areas of multiple radar
  coverage since an adjacent radar will provide TIS.
  If no other TIS-capable radar is available, the "Goodbye"
  message will be received and TIS terminated until coverage is resumed.

  (e)
  Intermittent Operations:  TIS
  operation may be intermittent during turns or other maneuvering, particularly
  if the transponder system does not include antenna diversity (antenna mounted
  on the top and bottom of the aircraft).  As
  in (d) above, TIS is dependent on two-way, “line of sight” communications
  between the aircraft and the Mode S radar.
  Whenever the structure of the client aircraft comes between the
  transponder antenna (usually located on the underside of the aircraft) and the
  ground-based radar antenna, the signal may be temporarily interrupted.

  (f)
  TIS Predictive Algorithm:  TIS
  information is collected one radar scan prior to the scan during which the
  uplink occurs.  Therefore, the
  surveillance information is approximately 5 seconds old.
  In order to present the intruders in a “real time” position, TIS
  uses a “predictive algorithm” in its tracking software.
  This algorithm uses track history data to extrapolate intruders to
  their expected positions consistent with the time of display in the cockpit.
  Occasionally, aircraft maneuvering will cause this algorithm to induce
  errors in the TIS display.  These
  errors primarily affect relative bearing information; intruder distance and
  altitude will remain relatively accurate and may be used to assist in “see
  and avoid.”  Some of the more
  common examples of these errors are as follows:

  (1)
  When client or intruder aircraft maneuver excessively or abruptly,
  the tracking algorithm will report incorrect horizontal position until the
  maneuvering aircraft stabilizes.

  (2)      When
  a rapidly closing intruder is on a course that crosses the client at a shallow
  angle (either overtaking or head on) and either aircraft abruptly changes
  course within ¼ NM, TIS will display the intruder on the opposite side of the
  client than it actually is.
These
  are relatively rare occurrences and will be corrected in a few radar scans
  once the course has stabilized.

  (g)  Heading/Course
  Reference: Not
  all TIS aircraft installations will have onboard heading reference
  information.  In these
  installations, aircraft course reference to the TIS display is provided by the
  Mode S radar.  The radar only
  determines ground track information and has no indication of the client
  aircraft heading.  In these
  installations, all intruder bearing information is referenced to ground track
  and does not account for wind correction.
  Additionally, since ground-based radar will require several scans to
  determine aircraft course following a course change, a lag in TIS display
  orientation (intruder aircraft bearing) will occur.
  As in (f) above, intruder distance and altitude are still usable.

  (h)
  Closely-Spaced Intruder Errors:  When
  operating more than 30 NM from the Mode S sensor, TIS forces any intruder
  within 3/8 NM of the TIS client to appear at the same horizontal position as
  the client aircraft.  Without this
  feature, TIS could display intruders in a manner confusing to the pilot in
  critical situations (e.g. a closely-spaced intruder that is actually to the
  right of the client may appear on the TIS display to the left).
  At longer distances from the radar, TIS cannot accurately determine
  relative bearing/distance information on intruder aircraft that are in close
  proximity to the client.
Because
  TIS uses a ground-based, rotating radar for surveillance information, the
  accuracy of TIS data is dependent on the distance from the sensor (radar)
  providing the service.  This is
  much the same phenomenon as experienced with ground-based navigational aids,
  such as VOR or NDB.  As distance
  from the radar increases, the accuracy of surveillance decreases.
  Since TIS does not inform the pilot of distance from the Mode S radar,
  the pilot must assume that any intruder appearing at the same position as the
  client aircraft may actually be up to 3/8 NM away in any direction.
  Consistent with the operation of TIS, an alert on the display
  (regardless of distance from the radar) should stimulate an outside visual
  scan, intruder acquisition, and traffic avoidance based on outside reference.

  e.  REPORTS OF TIS
  MALFUNCTIONS

  1.
  Users of TIS can render valuable assistance in the early correction of
  malfunctions by reporting their observations of undesirable performance.
  Reporters should identify the time of observation, location, type and
  identity of aircraft, and describe the condition observed; the type of
  transponder processor, and software in use can also be useful information.
  Since TIS performance is monitored by maintenance personnel rather than
  ATC, it is suggested that malfunctions be reported in the following ways:

  (a)
  By telephone to the nearest Flight Service Station (FSS) facility.

  (b)
  By FAA Form 8000-7, Safety Improvement
  Report, a postage-paid card designed for this purpose.
  These cards may be obtained at FAA FSSs, General Aviation District
  Offices, Flight Standards District Offices, and General Aviation Fixed Based
  Operations.

4-4-16.
  TRAFFIC INFORMATION SERVICE (TIS)

  a. TIS
  provides proximity warning only, to assist the pilot in the visual acquisition
  of intruder aircraft.  No
  recommended avoidance maneuvers are provided nor authorized as a direct result
  of a TIS intruder display or TIS alert.  It
  is intended for use by aircraft in which TCAS is not required.

  b.
  TIS does not alter or diminish the pilot’s basic authority and
  responsibility to ensure safe flight.  Since
  TIS does not respond to aircraft which are not transponder equipped, aircraft
  with a transponder failure, or aircraft out of radar coverage, TIS alone does
  not ensure safe separation in every case.

  c. At this time, no air
  traffic service nor handling is predicated on the availability of TIS
  equipment in the aircraft.
