ONWA KS-200A+ Class B+ AIS Transponder 5W Transmission Marine AIS with wifiClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 340.00 USD |
- ONWA KS-200A+ Marine AIS receiver and transmitter AIS 5 watt Class B+AIS
- ONWA KS-200A+ AIS Transponder Marine AIS 5 watt Class B AIS Transponder Support nmea2000 with WIFI
- Dimensions: 200mm (L) x 102mm (W) x 45.8mm (H)
- GPS Receiver (Internal AlS): IEC 61108-1 Compatible Connectors: VHF Antenna Connector PL259 Female GPS Antenna Connector SMA Female Interface NMEA 2000
Features:
ONWA Class B+ AlS transponder transmits and receives all data from nearby targets around your boat (with a suitable VHF antenna)
CLASS B+ AIS TECHNOLOGY
SOTDMA Technology
Same technology used by Class A
Guaranteed time slot allocation
5W Transmit Power: Increases AIS satellite range and reception allowing global monitoring.
Range - can be seen up to 10nm to 12nm
Increased transmission speed (depending on speed)
SPECIFICATIONS
GPS receiver (internal AlS) IEC 61108-1 compliant

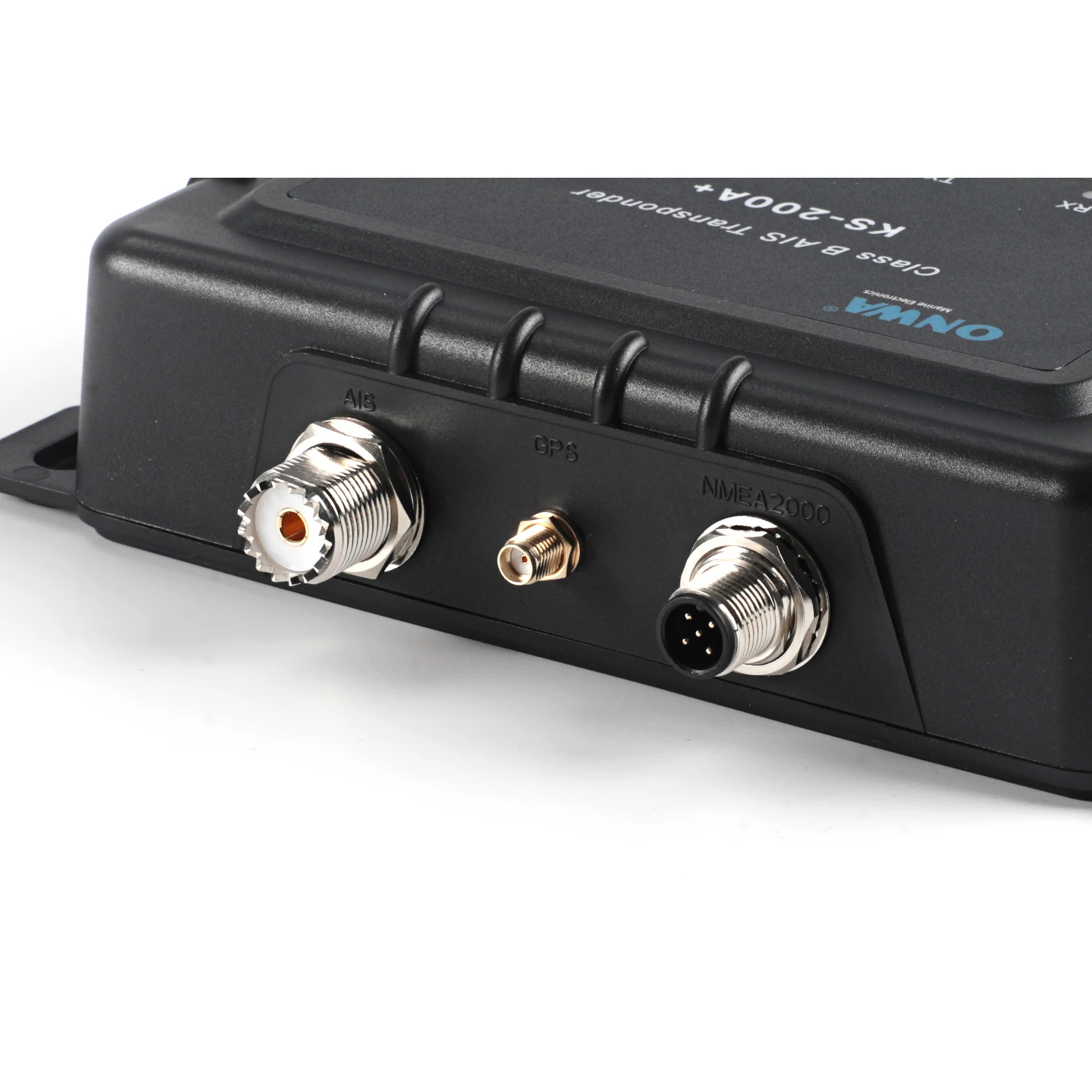

Connectors:
VHF PL259 Female Antenna Connector
GPS Antenna Connector SMA Female
NMEA 2000 Interface
PHYSICAL
Dimensions: 200mm (L) x 102mm (W) x 45.8mm (H)
Weight: 0.45kg
Power:
Input: 10.5~35V DC
Power consumption: 0.20A rated
Electrical interface: RS232 38400 two-way baudrate
Environmental: IEC 60945 (Cat C)
Operating temperature: -25°C to +60°C.
Supported NMEA phrase: VDM, VDO, RMC, GSV, GGA, GSA
AIS FEATURES
Frequency Frequency: 161.975MHz, 162.025MHz
Access scheme: SOTDMA
Channel Bandwidth: 25KHz
Modulation: AIS GMSK
Number of AlS Transmitter:1
Number of SS Receiver: 2
ALS Channel 1:CH 87B (161.975MHz)
ALS Channel 2:CH 88B (162.025MHz)
Standard output power: 5W
Customizable TX output power: 2w, 12.5W
Rx sensitivity: <-120dBm @ 20% PER
RX Message Format: Class A and B AlS messages
Compliance industry standards: IEC-62287 IEC 62287-2; Ed.2.0: 2017.
ONWA Class B+ AlS transponder transmits and receives all data from nearby targets around your boat (with a suitable VHF antenna)
CLASS B+ AIS TECHNOLOGY
SOTDMA Technology
Same technology used by Class A
Guaranteed time slot allocation
5W Transmit Power: Increases AIS satellite range and reception allowing global monitoring.
Range - can be seen up to 10nm to 12nm
Increased transmission speed (depending on speed)
SPECIFICATIONS
GPS receiver (internal AlS) IEC 61108-1 compliant
Connectors:
VHF PL259 Female Antenna Connector
GPS Antenna Connector SMA Female
NMEA 2000 Interface
PHYSICAL
Dimensions: 200mm (L) x 102mm (W) x 45.8mm (H)
Weight: 0.45kg
Power:
Input: 10.5~35V DC
Power consumption: 0.20A rated
Electrical interface: RS232 38400 two-way baudrate
Environmental: IEC 60945 (Cat C)
Operating temperature: -25°C to +60°C.
Supported NMEA phrase: VDM, VDO, RMC, GSV, GGA, GSA
AIS FEATURES
Frequency Frequency: 161.975MHz, 162.025MHz
Access scheme: SOTDMA
Channel Bandwidth: 25KHz
Modulation: AIS GMSK
Number of AlS Transmitter:1
Number of SS Receiver: 2
ALS Channel 1:CH 87B (161.975MHz)
ALS Channel 2:CH 88B (162.025MHz)
Standard output power: 5W
Customizable TX output power: 2w, 12.5W
Rx sensitivity: <-120dBm @ 20% PER
RX Message Format: Class A and B AlS messages
Compliance industry standards: IEC-62287 IEC 62287-2; Ed.2.0: 2017.
ONWA KS-200A+ Marine AIS receiver and AIS transmitter 5 watts Class B+ AIS
ONWA KS-200A+ AIS Transponder Marine AIS 5 watts Class B AIS Transponder Support nmea2000
FEATURES
The ONWA Class B+ AlS Transponder transmits and receves all data ofnearby targets around your boat (with suitable VHF Antenne)
|
|
|
|
|
