ONWA Model: KS-200B+_N Class B+ AIS Transponder AIS data via RS232 Network DataClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 355.00 USD |

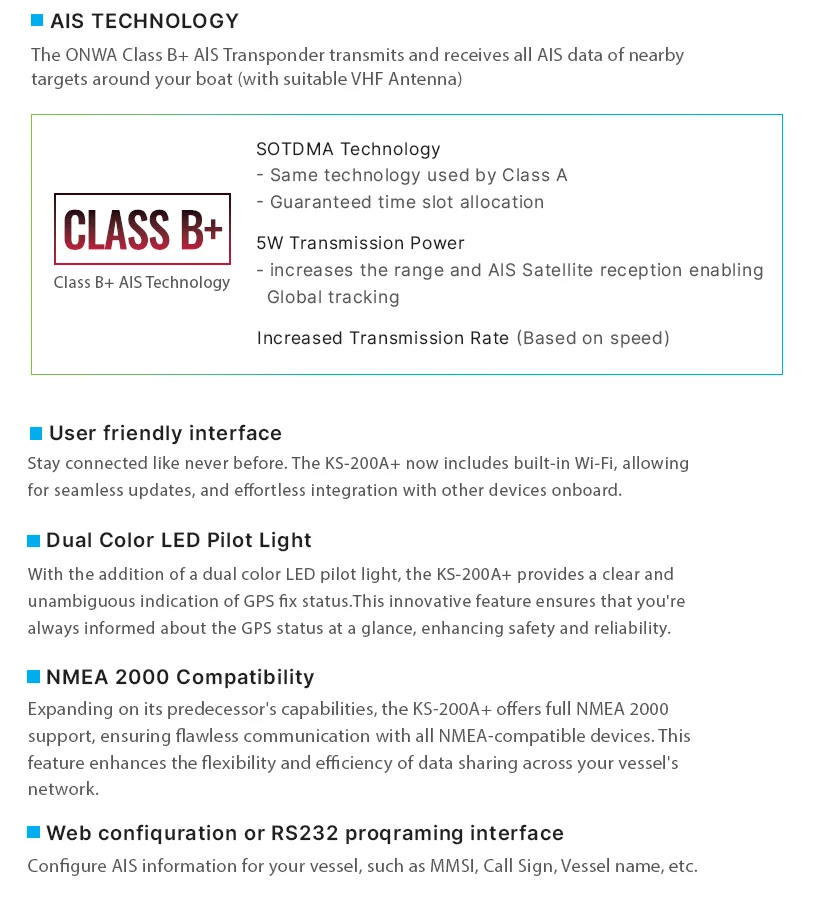

The ONWA AIS receiver receives all AIS data of nearby targets around your boat (with suitable VHF Antenna) able to Interpret incoming AIS data for CPA alert or AIS S.A.R.T emergency messages
For KS-200B+_N:

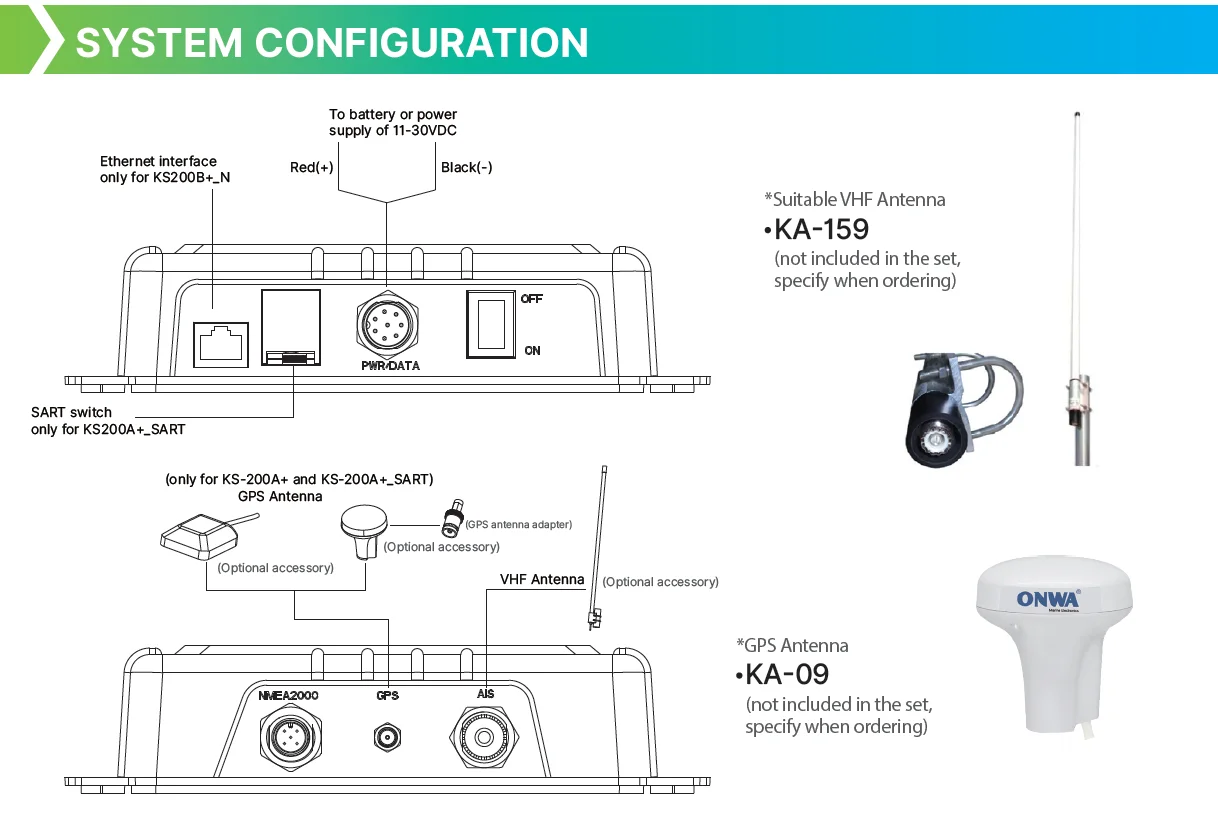

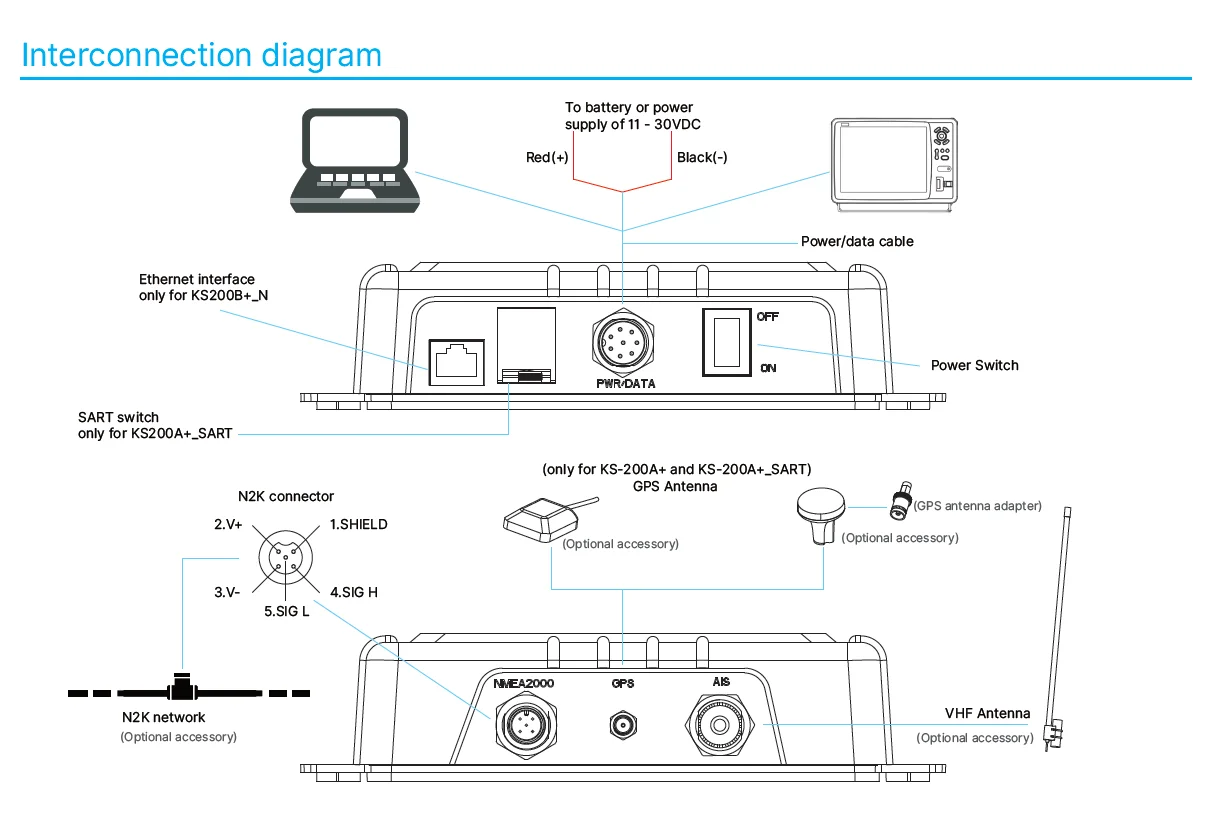

ONWA KS-200B+_N is an external AIS Device that may be interfaced with your Marine Radar or GPS Chart Plotter capable to receive AIS data via RS232 port and Network Data

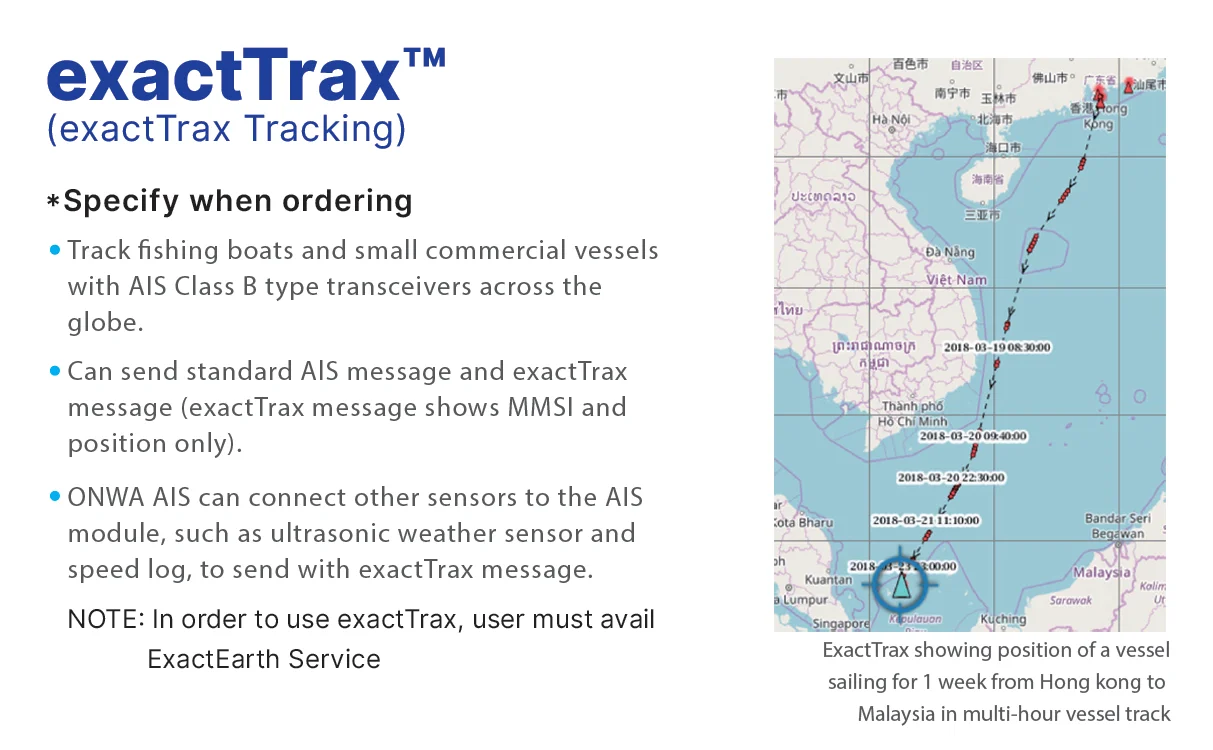

KS-200B+_N lets you track your vessel even at certain distance using IP address of the black box unit which you can monitor from your computer

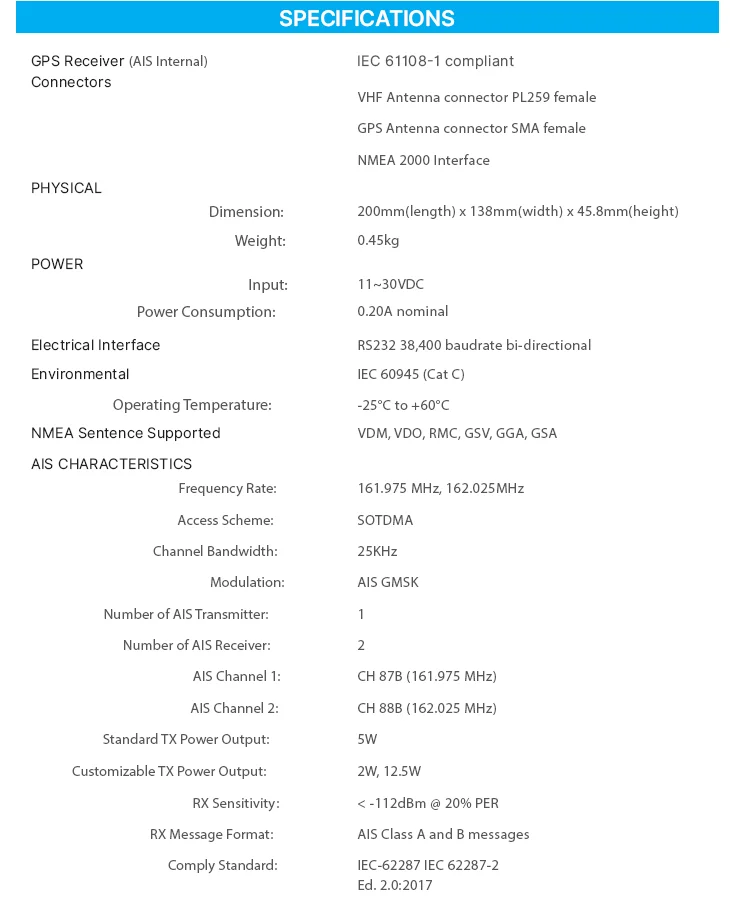

Physical | |

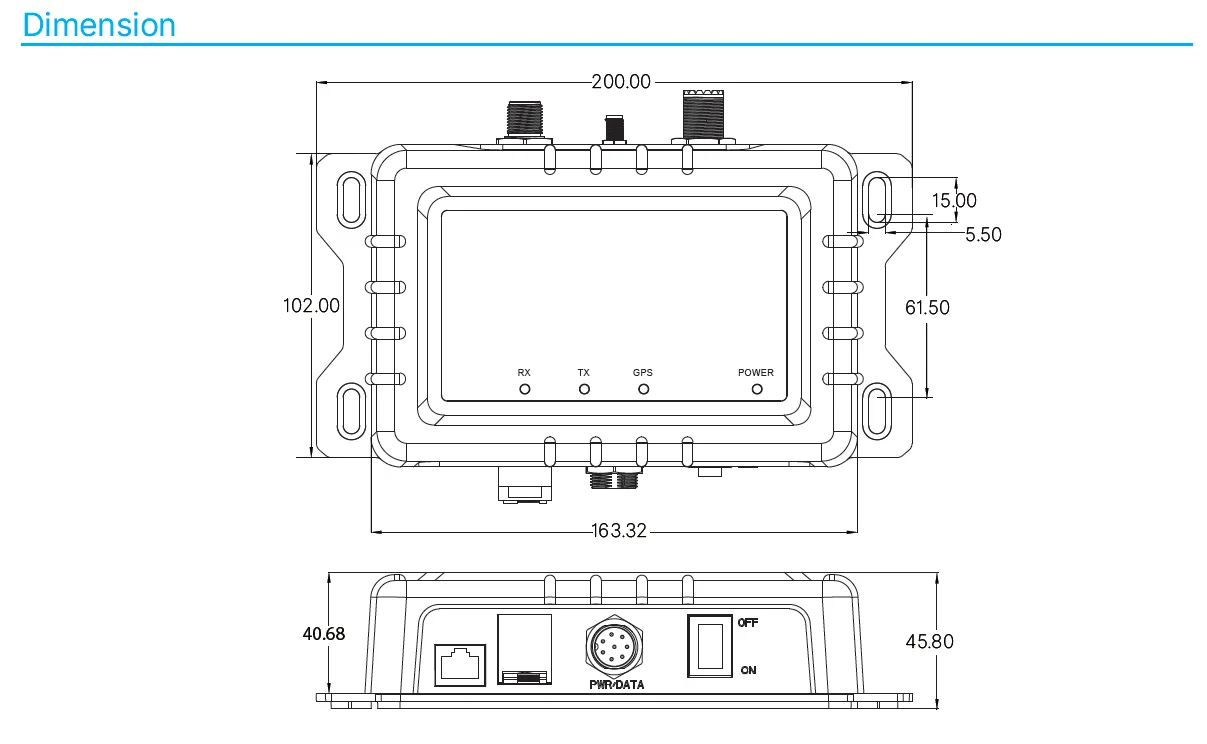

Dimension | 200mm(length) x 138.7mm(width) x 45.8mm(height) |
Weight | 0.45kg |
Power | |
Input | 11 ~ 30VDC |
Power consumption | 0.20A nominal |
Electrical Interface | RS232 38,400 baudrate bi-directional |
Environment | |
IEC 60945(Cat C) | |
Operating Temperature | -25℃ to +60℃ |
WIFI | |
Mode | Hotspot (default) or WIFI terminal |
User name | KS200xx_xxxxxxxx |
Password | 12345678 (default) |
IP | 192.168.4.1 |
For KS200B+ and KS200B+_N | |

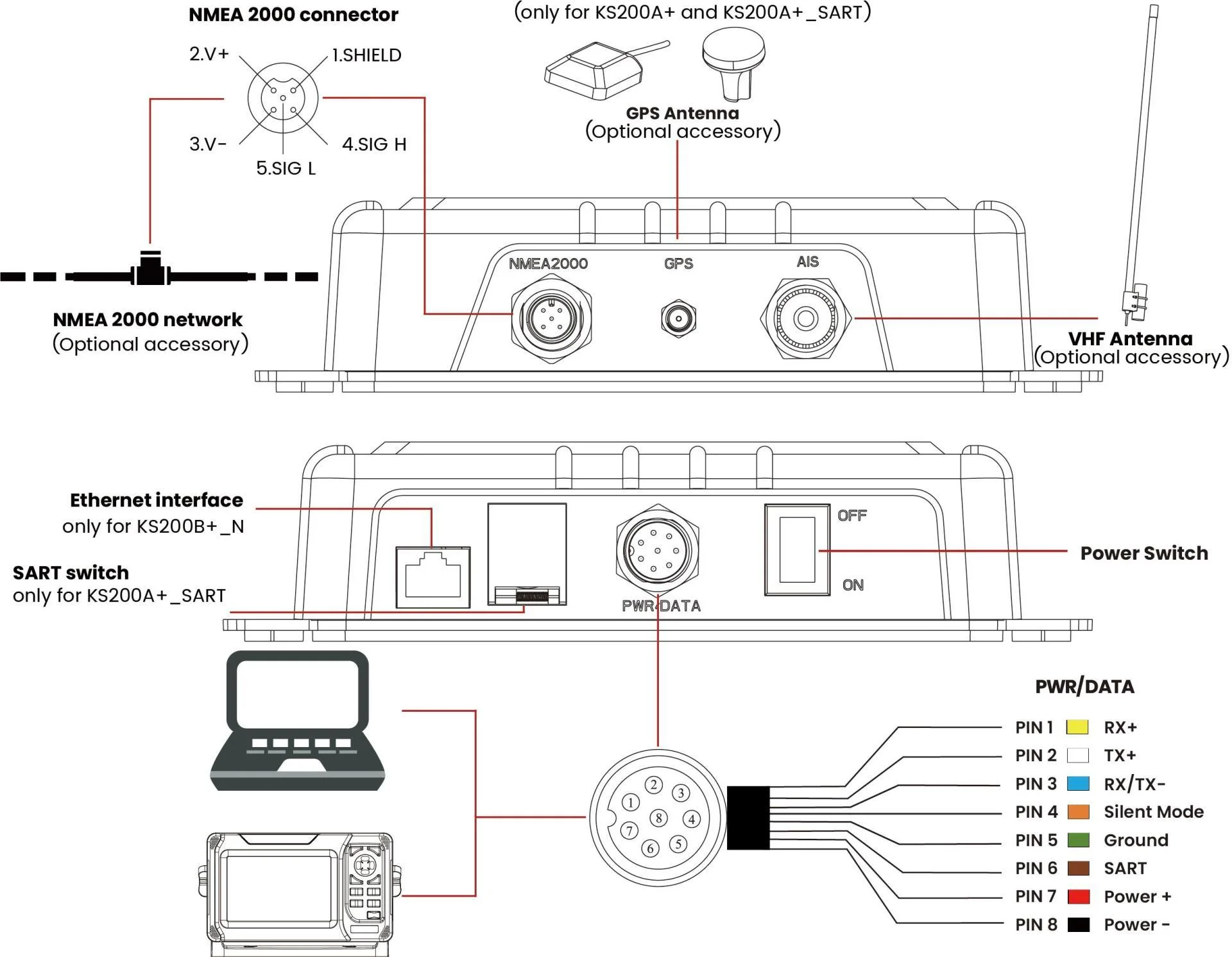

Connectors | |
VHF Antenna connector PL259 female | |
NMEA 2000 Interface | |
VHF Transceiver | |
Frequency | 161.975 MHz (AIS Channel 1: CH87B) |
162.025 MHz (AIS Channel 2: CH88B) | |
Receiver | x 2 |
Channel bandwidth | 25KHz |
Modulation modes | GMSK |
Bit rate | 9600 b/s GMSK |
Rx Sensitivity | <-112dBm @20%PER |
Compliant with the following standards | |
- IEC62287-2 (IEC standard, Class B shipborne equipment) - IEC60945 Edn 4.0 (IEC standard, environmental requirements) - ITU-RM.1371-4 (Universal AIS Technical Characteristics) - IEC61162-1 Edn. 2.0 (IEC standard, digital interfaces part 1) - IEC61108-1 (IEC standard, GPS receiver equipment) - IEC61993-2 (IEC standard, Marine navigation equipment) | |
Certifications | CE compliant |
|
|
|
|
|
|
