ASPEN AVIONICS ACU Analog Converter Unit 910-00004-01 *GUARANTEEDClick here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 424.25 USD |

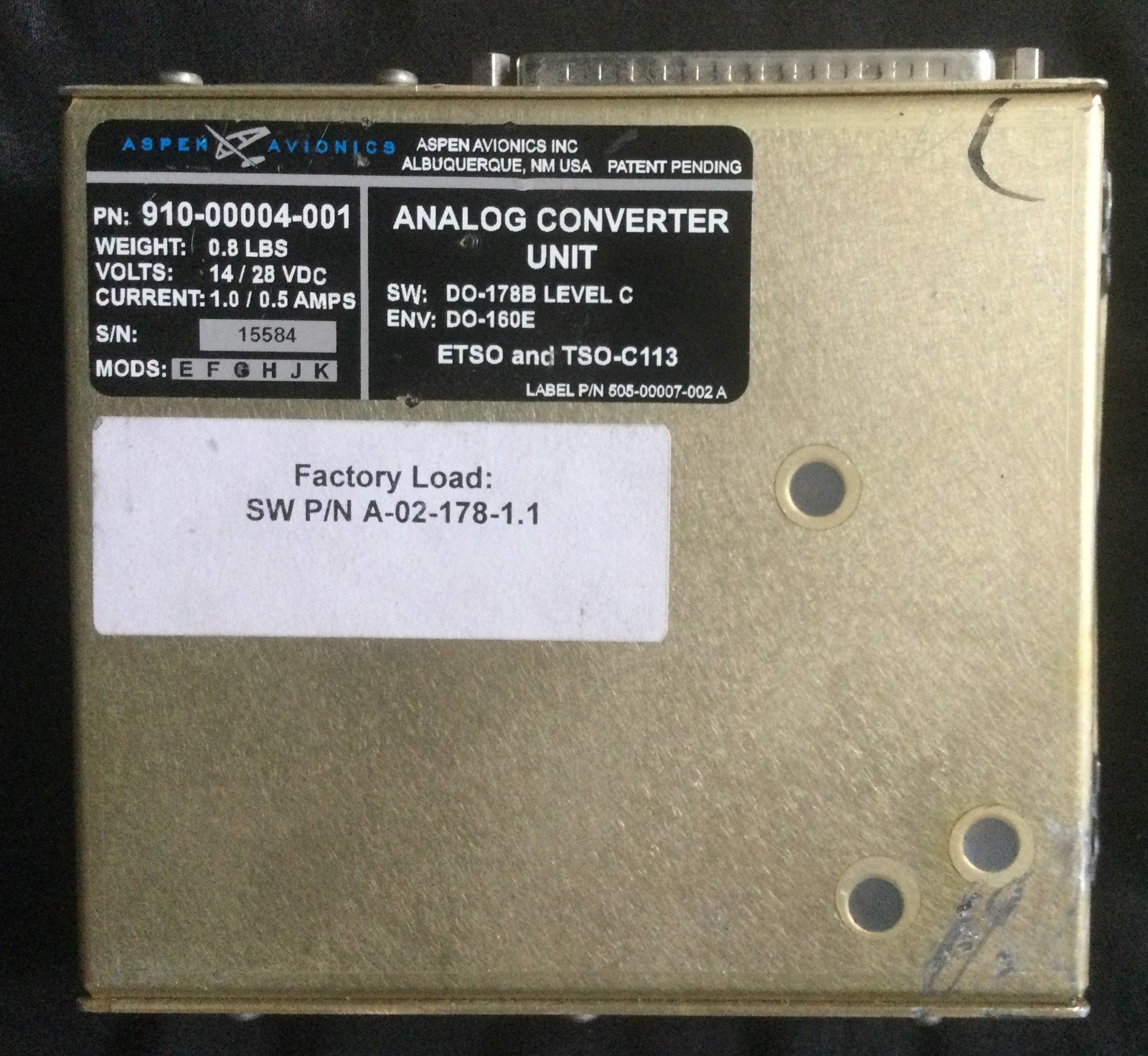

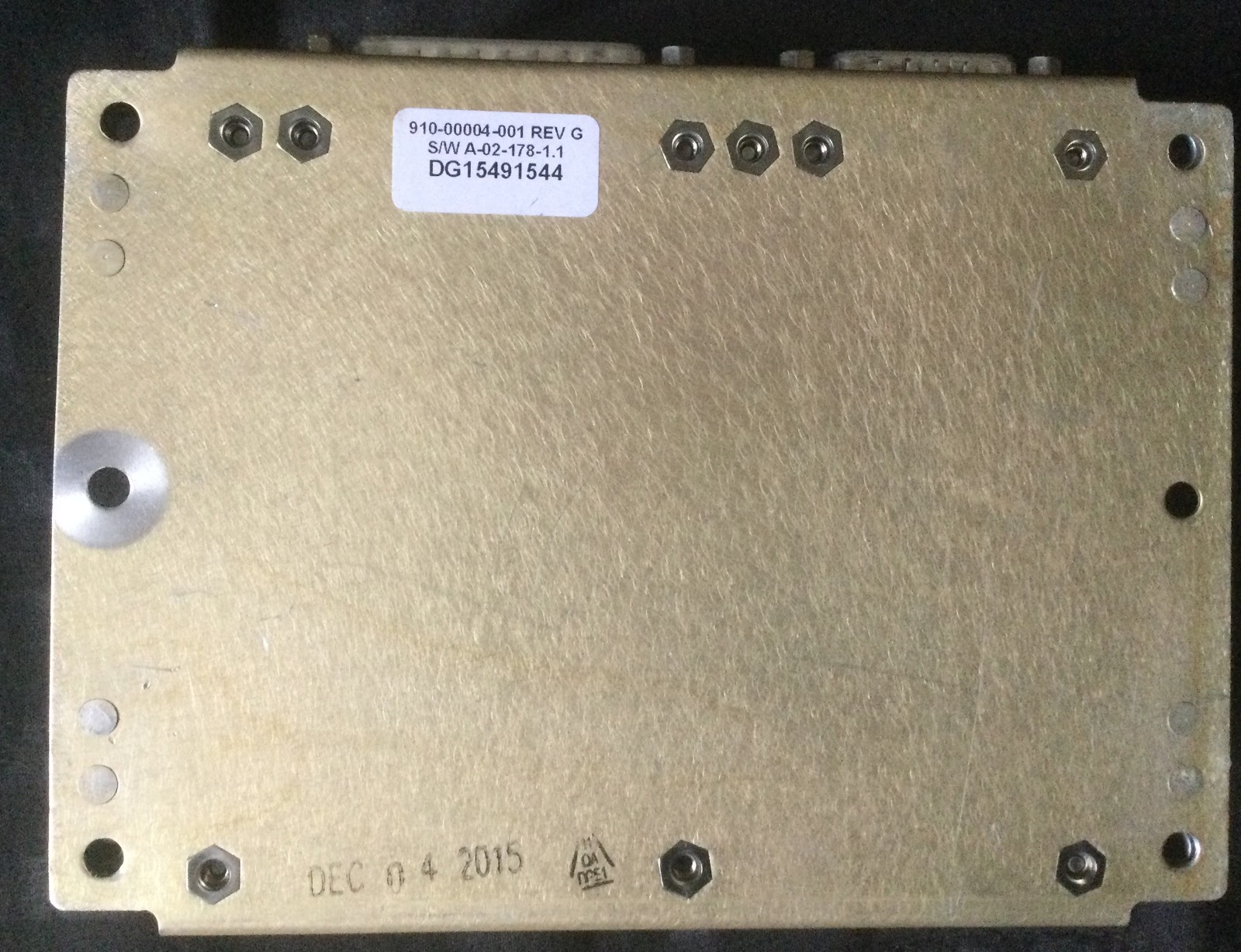

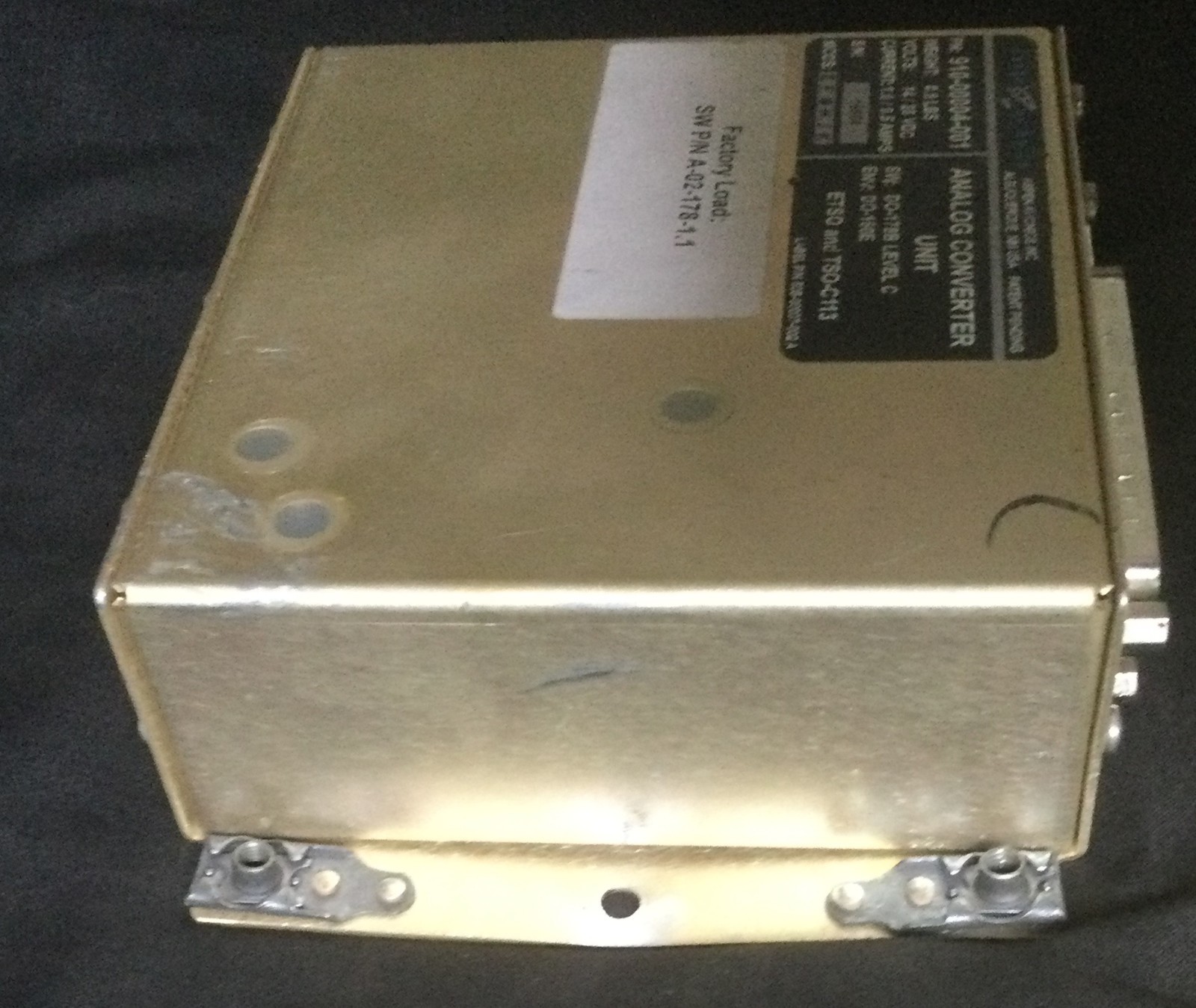

The ACU (Analog Converter Unit) is used with Aspen’s EFD‑1000 / PFD‑1000 line, to allow the display to interface with older or analog avionics sources.
It takes analog signals (course, heading, etc.), and converts them for digital display / autopilot support, and vice versa for required analog outputs.
It supports 14‑28 VDC power input, which is important since many general aviation aircraft use 28V systems or 14V, or mixed.
It complies with environmental and test standards (DO‑160, etc.), suitable for aircraft use.
The Aspen Avionics ACU (Analog Converter Unit) P/N 910‑00004‑001 is part of Aspen’s Evolution/EFD1000 (now EFD1000 E5 / EFI) display family, which are covered by a broad FAA AML‑STC (Approved Model List / Supplemental Type Certificate).
What this means is that the ACU is approved (when installed according to the instructions) for over 900 airplane makes & models, especially in the GA (general aviation) single‑engine and light twin categories.
Aircraft compatibility depends on the full autopilot system configuration (servo types, flight director, etc.) and the specific STC (Supplemental Type Certificate) or OEM installation.
Always verify with:
-
Your aircraft's logbooks
-
The aircraft's avionics shop
-
An A&P/IA mechanic
-
The STC paperwork or aircraft flight manual supplement (AFMS)
Unit has been Yellow‑Tagged, meaning inspected by a certified avionics technician and tagged serviceable.
Functional guarantee: display lighting, switch functions, readouts all verified (unless noted)
|
|
|
|
|
|
|
