Garmin Touchscreen GPS RCVR GTN750 011-02282-00Click here to purchase or contact the seller of this item on eBay |
|
|
| Current Price: 14,000.00 USD |

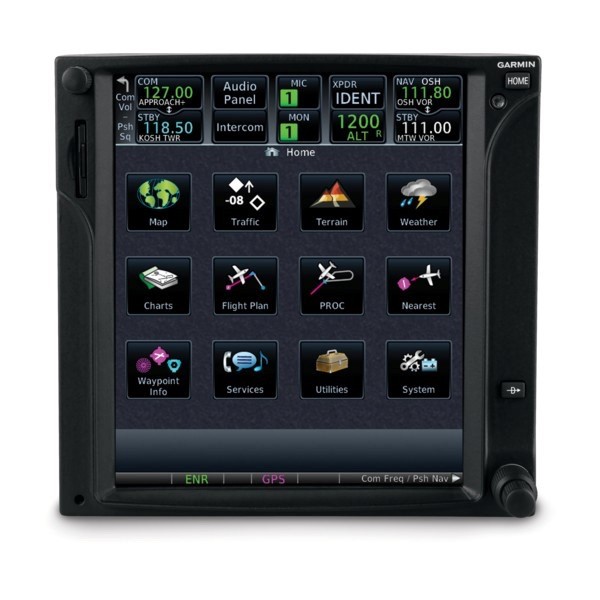

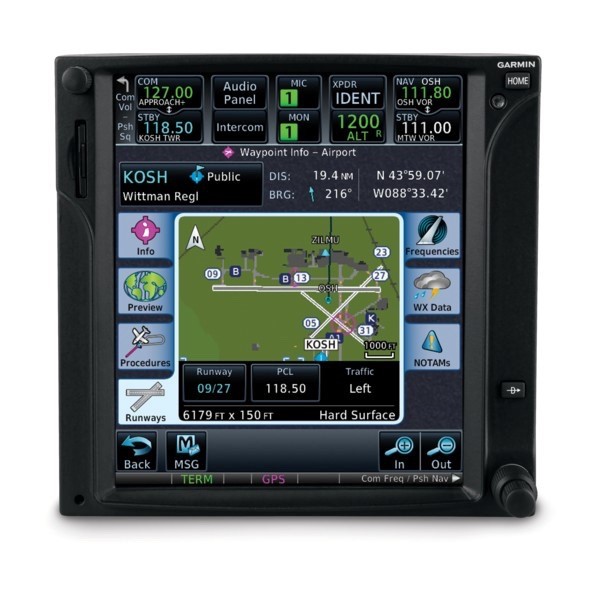

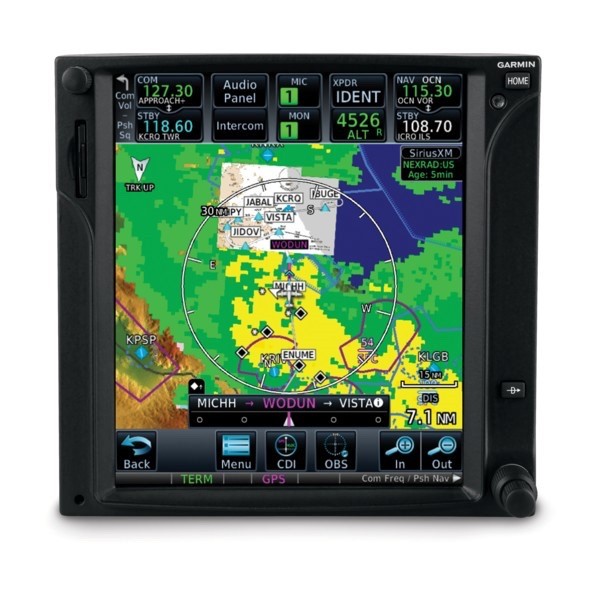

The Garmin GTN 750 features a 6.9-inch diagonal color touchscreen display with a resolution of 600x708 pixels, measuring 6.25" W x 6.00" H. It is a WAAS/SBAS-certified GPS, VOR/LOC/GS capable, and includes a built-in 10-watt VHF comm radio, with an optional 16-watt radio available. The unit operates within an 11-33 VDC input voltage range, weighs approximately 5.7 lbs (2.60 kg), and provides enhanced situational awareness with features like Garmin SafeTaxi and optional Jeppesen ChartView.
Unit includes:
- Mounting tray
- Backplate
- New Connection Kit
- FAA Form 8130
- GTN 750 Operators Manual
Key Specifications
- Display: 6.9-inch diagonal, color TFT LCD, sunlight-readable
- Display Resolution: 600 x 708 pixels
- Unit Dimensions: 6.25" W x 6.00" H x 11.25" D
- Weight: Approximately 5.7 lbs (2.60 kg)
- Voltage: 11-33 VDC input
- GPS Capabilities: WAAS/SBAS-certified
- Nav/Comm: Built-in VOR/LOC/GS and 10W VHF Comm radio
Key Features
- Intuitive touchscreen with on-screen keyboard for data entry.Situational Awareness:
- Includes SafeTaxi for ground operations and offers optional Jeppesen ChartView for approach plates.Expanded Operations:
- SBAS/WAAS certification allows for GPS-guided LPV glidepath instrument approaches.Integrated Navigation:
- Preloads NAV frequencies and auto-selects VHF NAV sources for ILS approaches.
|
|
|
|
